Main LT Panel (PCC)
Main low-tension panels and power control centres that take the incoming supply from the transformer or DG and distribute it to downstream panels, rated up to 6000 A.
Our Products
Electrical Panels Built to Specification
LT, PCC, MCC, capacitor, PLC and VFD panels, PDBs, feeder pillars and bus duct rising mains, manufactured in Ghaziabad.
Certifications & Approvals
Certified, Approved and Authorised
ISO 9001:2015 certified, CPRI tested, CPWD and PWD approved, and an authorised partner of Havells and C&S Electric.
Our Services
Complete Electrical Installation Services
Transformers and panels, HT/LT cable laying, earthing, lightning protection, busducts and fire fighting systems, installed and tested.
- 30+
- Years of panel building
- 200+
- Satisfied customers
- 999+
- Panels installed
- 50 kA
- CPRI-tested short-circuit rating
Who we build for
Panels for the people who specify and install them
Electrical contractors
Send your BOQ or single-line diagram and get an itemised quote. Panels are built with switchgear from L&T, C&S Electric or Havells and routine-tested at our works, so site commissioning needs very little pre-checking.
EPC contractors
One manufacturer for main LT, distribution, APFC, DG and motor-control panels. Drawings are prepared in-house on ZW CAD, and panels are dispatched to project sites across India.
Consultants and specifiers
Short-circuit withstand and IP55 verified at CPRI, internal separation up to Form 4, and powder coating up to 100 microns over 7-tank pre-treatment.
Our products
Electrical control panels we manufacture
LT Distribution Panel
Floor-standing and wall-mounted distribution panels and distribution boards (DBs) that feed power from the main LT panel to floors, sections and equipment.
Meter Board Panel
Wall-mounted meter boards that house energy meters and their protection for individual consumers in residential and commercial buildings.

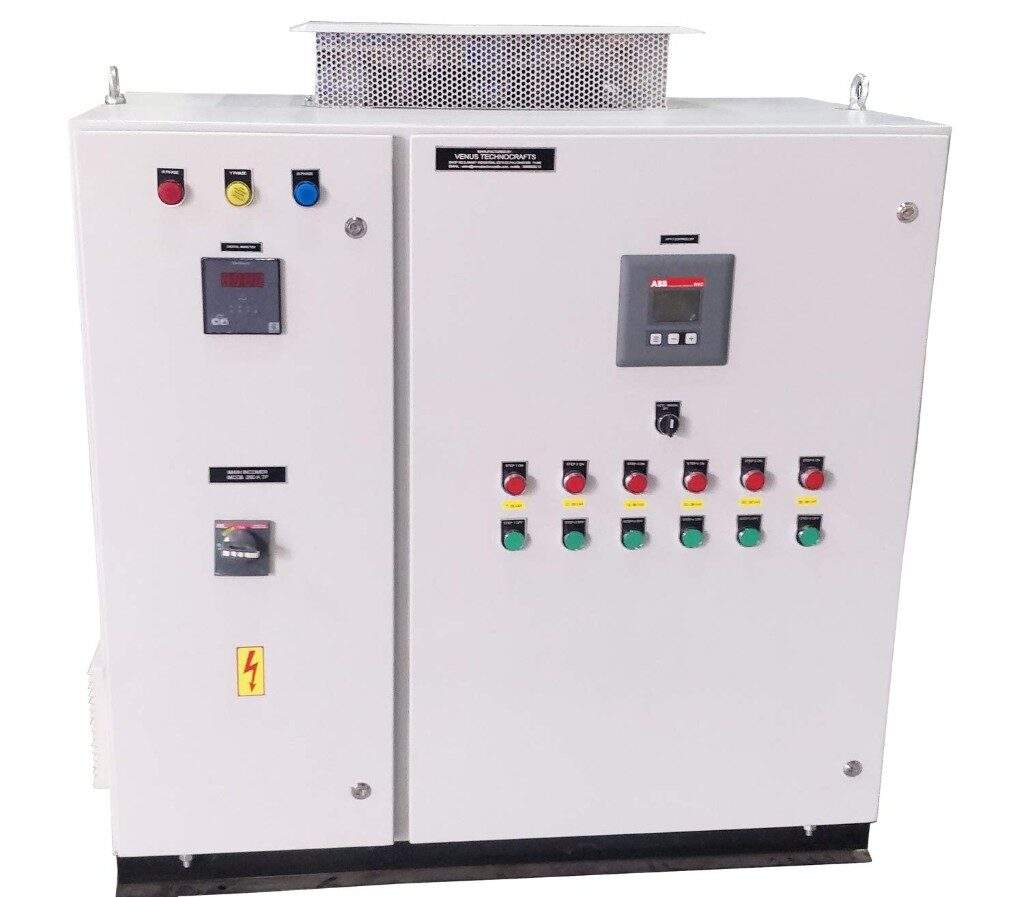

APFC Panel
Automatic power factor correction panels that switch capacitor banks in steps to hold your power factor near the target and help avoid utility penalties.
DG Synchronization Panel
Auto synchronising panels that run two or more diesel generators in parallel, share the load between them and feed your distribution.
Motor Control Centre (MCC)
Motor control centres with fixed or draw-out starter feeders that start, protect and control the motors in your plant from one panel.
Fire Pump Control Panel
Fire pump control panels for main, jockey and diesel-engine fire pumps, in fire-red enclosures with clear status indication.
Why Amit Power Control
Built, finished and tested under one roof
CPRI-tested design
Short-circuit withstand at 50 kA and IP55 degree of protection, verified at the Central Power Research Institute.
In-house fabrication
Amada turret punch press, hydraulic shear, press brake, and busbar punching and bending machines in our own factory.
7-tank pre-treatment
Every enclosure is surface-treated in a 7-tank plant and powder coated on a conveyorised line, up to 100 microns.
IP55 and Form 4
Indoor or outdoor enclosures up to IP55, with internal separation up to Form 4.
Up to 6000 A
Power control centres up to 6000 A, with aluminium busbars sized to your load.
Tested before dispatch
Every panel is routine-tested at our works, so it can be commissioned on site with very little pre-commissioning work.
Applications
Where our panels work
Commercial buildings and malls
Main LT, distribution and DG panels for offices, malls and mixed-use buildings.
Residential townships
Meter boards, feeder pillars and distribution for societies and townships.
Hospitals
AMF and DG synchronisation panels for uninterrupted supply.
Hotels
Distribution, APFC and DG panels for round-the-clock loads.
Factories and process plants
MCCs, VFD panels and APFC for motor-heavy loads.
Water and sewage treatment
MCC, PLC and pump control panels for treatment plants and pumping stations.
Warehouses and cold storage
Distribution and APFC panels for lighting, HVAC and refrigeration loads.
Government and public buildings
Panels for institutional and public infrastructure projects.
How we work
From BOQ to dispatch
- 1
Share your requirement
Send your BOQ, single-line diagram or specification on WhatsApp, by email or through the quote form.
- 2
Technical review and quote
We check ratings, switchgear and enclosure needs, and send an itemised quotation.
- 3
Drawing approval
We prepare the GA and wiring drawings in-house for your approval before fabrication.
- 4
Fabrication and finishing
Sheet metal is cut, punched and bent in-house, then surface-treated and powder coated.
- 5
Assembly and testing
Panels are assembled, wired and routine-tested at our works.
- 6
Dispatch
Panels are packed and dispatched to your site anywhere in India.
Our factory
Made under one roof in Ghaziabad
Our Mohan Nagar factory handles every stage: drawings, sheet-metal fabrication, busbar work, surface treatment, powder coating, assembly, wiring and testing.
- Amada turret punch press
- Hydraulic shear and press brake
- Busbar punching and bending machines
- 7-tank surface treatment and conveyorised powder coating
Tested, documented, built with trusted switchgear
- CPRI short-circuit test, 50 kA
- CPRI IP55 test to IS/IEC 61439
- Switchgear: L&T · C&S Electric · Havells
Common questions
Have a BOQ or single-line diagram?
Send it today for an itemised quote on your panels.
