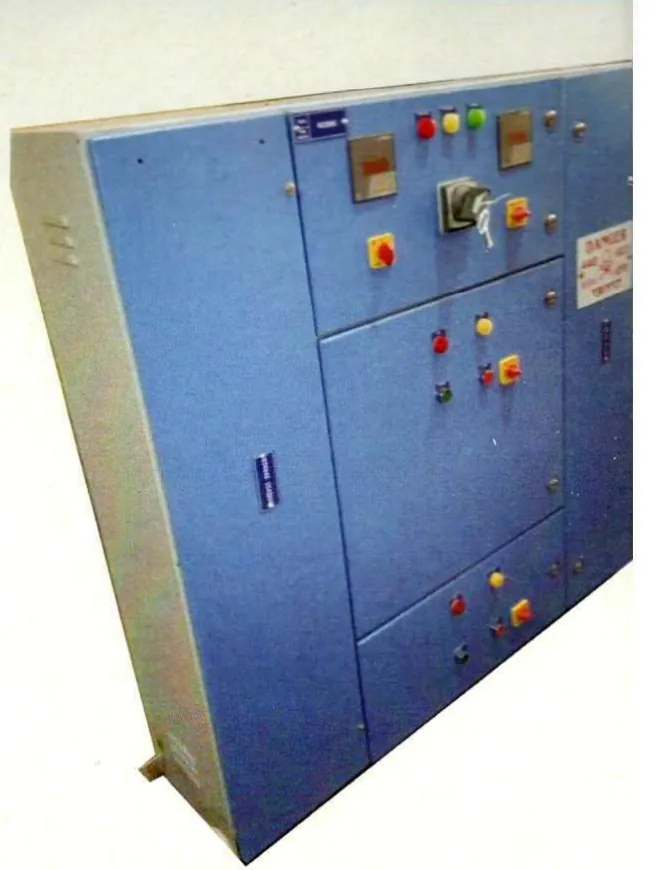

Motor Control Centre (MCC)
Motor control centres with fixed or draw-out starter feeders that start, protect and control the motors in your plant from one panel.
- Starter types
- DOL, star-delta, soft starter, VFD
- Feeder type
- Fixed or draw-out
- Busbar
- Aluminium, e.g. 400 A
- Operating voltage
- 380 / 415 / 440 V AC, 3-phase, 4-wire
Overview
A motor control centre (MCC) groups the starters for many motors into one panel, each with its own protection, controls and indication. It makes operation, maintenance and fault-finding simpler than scattered starters.
We build MCCs with fixed or draw-out feeders to your motor list, using DOL, star-delta, soft-starter or VFD starters as each motor requires.
Key features
- Fixed or draw-out starter feeders
- DOL, star-delta, soft-starter and VFD feeders
- Overload and short-circuit protection for every motor
- Local/remote control with run and trip indication
- Busbars and feeders sized to your motor list
Technical specifications
| Parameter | Value |
|---|---|
| Starter types | DOL, star-delta, soft starter, VFD |
| Feeder type | Fixed or draw-out |
| Busbar | Aluminium, e.g. 400 A |
| Operating voltage | 380 / 415 / 440 V AC, 3-phase, 4-wire |
| Frequency | 50 Hz |
| Short-circuit rating | Up to 50 kA for 1 s (CPRI-tested); higher on request |
| Degree of protection | Up to IP55 (CPRI-tested) |
| Internal separation | Up to Form 4 |
| Sheet steel | CRCA, 2 mm or 1.6 mm as specified |
| Surface finish | 7-tank pre-treatment, powder coated up to 100 microns |
| Busbars | Aluminium, TPN, rated to the load |
| Standard | IS/IEC 61439-1 and 61439-2 |
Applications
- Water and sewage treatment plants
- HVAC plant rooms
- Factories and process lines
- Pumping stations
Example builds
MCC panel for 25–100 HP motors
400 A aluminium busbar, 2 mm sheet, powder coated up to 100 microns, indoor or outdoor
FAQs
