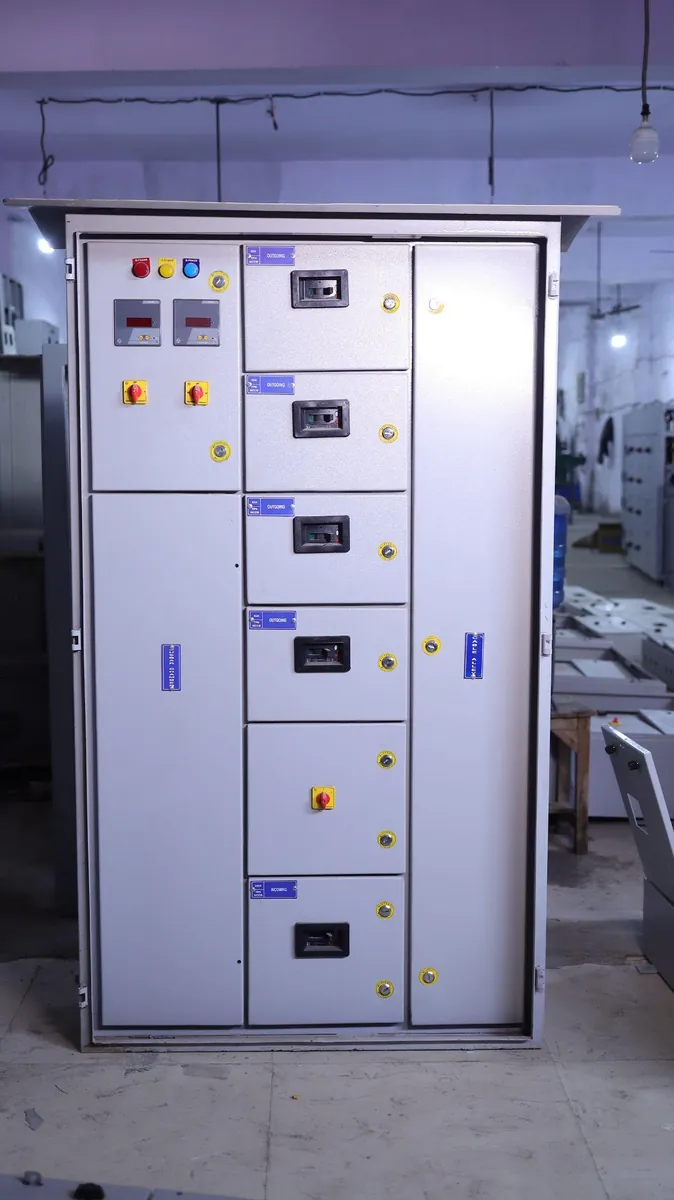

LT Distribution Panel
Floor-standing and wall-mounted distribution panels and distribution boards (DBs) that feed power from the main LT panel to floors, sections and equipment.
Power Distribution Panels
Main LT Panel (PCC)
Main low-tension panels and power control centres that take the incoming supply from the transformer or DG and distribute it to downstream panels, rated up to 6000 A.
- Rated current
- Up to 6000 A (PCC)
- Incomers
- ACB or MCCB, as per single-line diagram
- Construction
- Floor-standing, cubicle type
- Operating voltage
- 380 / 415 / 440 V AC, 3-phase, 4-wire
Overview
A main LT panel, also called a power control centre (PCC), is the heart of a building's or plant's electrical system. It receives power from the transformer or diesel generator and distributes it through outgoing feeders to sub-distribution panels, motor control centres and large loads.
We build main LT panels and PCCs to your single-line diagram and BOQ, from compact 600 A boards to power control centres rated up to 6000 A. Each panel is fabricated, powder coated, assembled and routine-tested in our Ghaziabad factory before dispatch.
Key features
- ACB or MCCB incomers and outgoing feeders, as per your single-line diagram
- Aluminium TPN busbars rated to your load, up to 6000 A
- Metering and indication on the incomer: ammeters, voltmeters or multifunction meters
- Internal separation up to Form 4
- Indoor or outdoor enclosures up to IP55
Technical specifications
| Parameter | Value |
|---|---|
| Rated current | Up to 6000 A (PCC) |
| Incomers | ACB or MCCB, as per single-line diagram |
| Construction | Floor-standing, cubicle type |
| Operating voltage | 380 / 415 / 440 V AC, 3-phase, 4-wire |
| Frequency | 50 Hz |
| Short-circuit rating | Up to 50 kA for 1 s (CPRI-tested); higher on request |
| Degree of protection | Up to IP55 (CPRI-tested) |
| Internal separation | Up to Form 4 |
| Sheet steel | CRCA, 2 mm or 1.6 mm as specified |
| Surface finish | 7-tank pre-treatment, powder coated up to 100 microns |
| Busbars | Aluminium, TPN, rated to the load |
| Standard | IS/IEC 61439-1 and 61439-2 |
Applications
- Commercial buildings and malls
- Hospitals and hotels
- Factories and process plants
- Residential townships
- Infrastructure and public buildings
Example builds

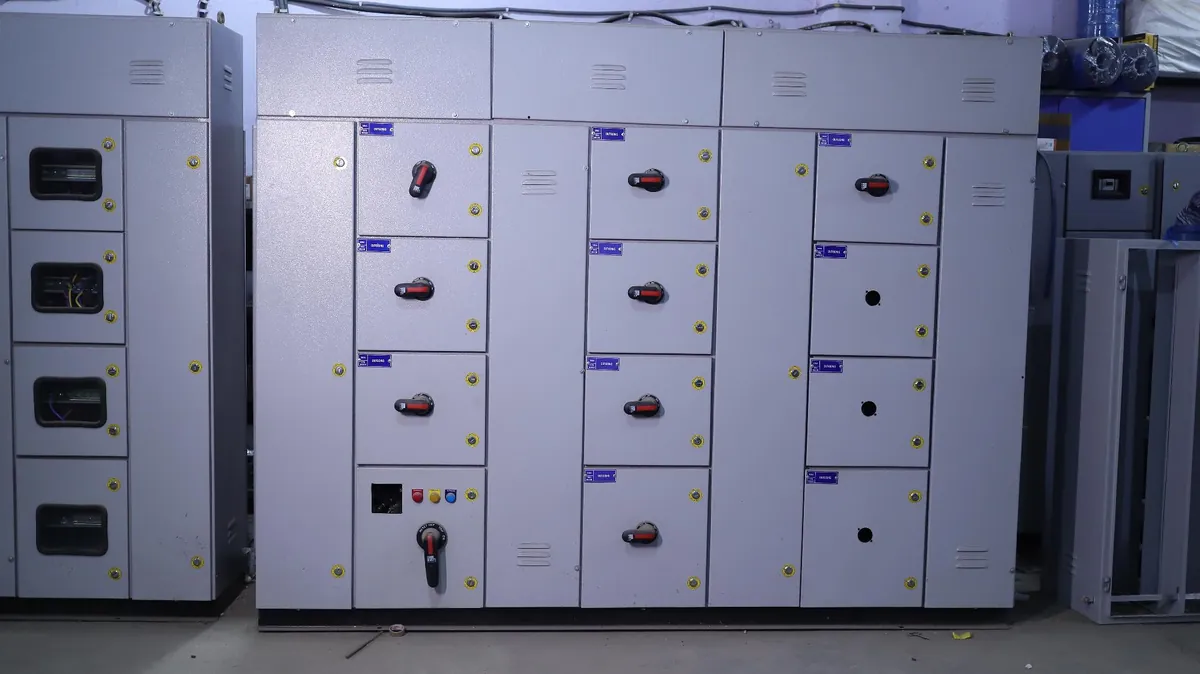

Indoor main LT panel
600 A TPN aluminium busbar, 2 mm CRCA, powder coated up to 100 microns

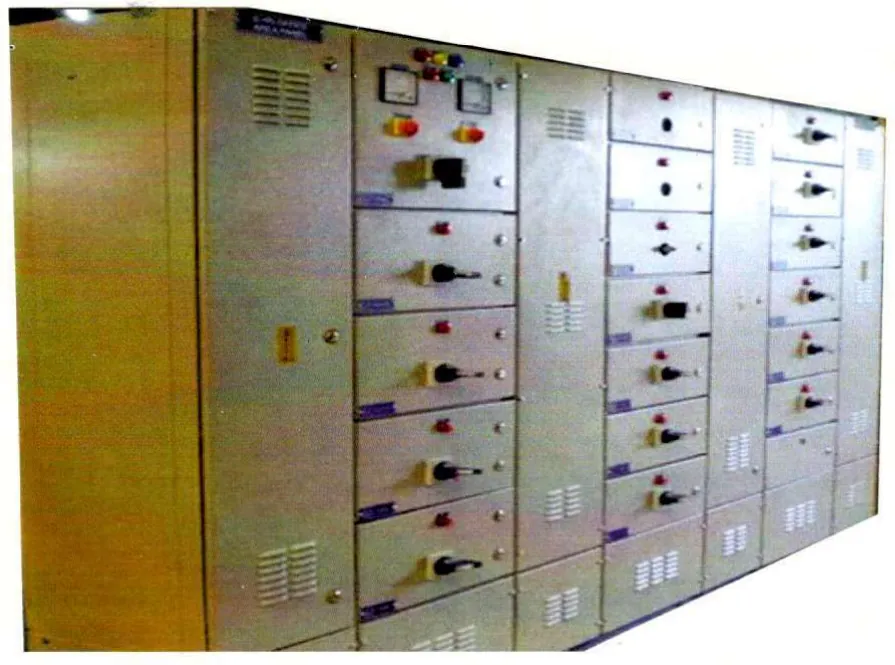

Cubicle-type LT panel
Incoming to outgoing, 1200 A aluminium busbar, 2 mm / 1.6 mm sheet, indoor or outdoor
FAQs
Related panels

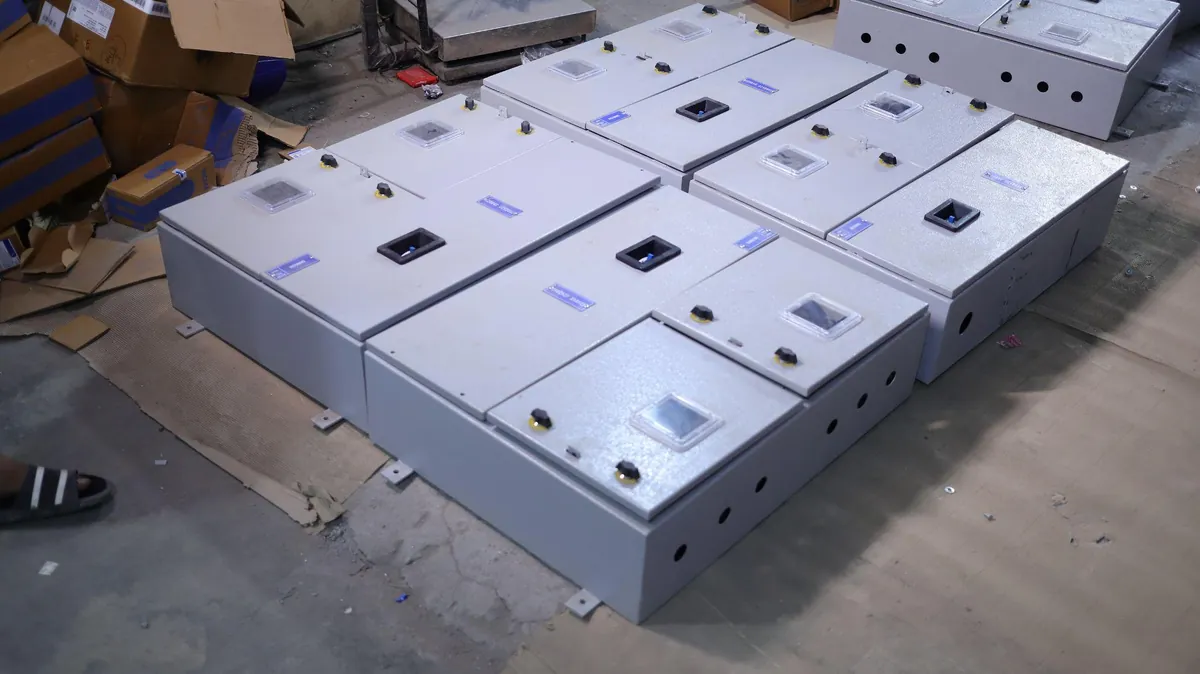

Meter Board Panel
Wall-mounted meter boards that house energy meters and their protection for individual consumers in residential and commercial buildings.
Feeder Pillar
Indoor and outdoor feeder pillars that distribute power across campuses, townships and street-lighting networks from one compact enclosure.
Have a BOQ or single-line diagram?
Send it today for an itemised quote on your panels.
