Fire Pump Control Panel
Fire pump control panels for main, jockey and diesel-engine fire pumps, in fire-red enclosures with clear status indication.
- Pumps controlled
- Main, jockey and diesel-engine pumps
- Starters
- Star-delta for electric pumps
- Busbar
- Aluminium, e.g. 400 A
- Operating voltage
- 380 / 415 / 440 V AC, 3-phase, 4-wire
Overview
A fire pump panel controls the pumps that keep a building's fire-fighting system pressurised. It runs the jockey pump to hold pressure, starts the main pump when demand rises, and starts the diesel-engine pump if electric supply is unavailable.
We build fire pump panels to your pump schedule, with star-delta starters for the electric pumps and controls for the diesel engine.
Key features
- Star-delta starters for main and jockey pumps
- Diesel-engine pump controls (12 V)
- Automatic start on pressure-switch signal
- Pump status and fault indication
- Fire-red powder-coated enclosure
Technical specifications
| Parameter | Value |
|---|---|
| Pumps controlled | Main, jockey and diesel-engine pumps |
| Starters | Star-delta for electric pumps |
| Busbar | Aluminium, e.g. 400 A |
| Operating voltage | 380 / 415 / 440 V AC, 3-phase, 4-wire |
| Frequency | 50 Hz |
| Short-circuit rating | Up to 50 kA for 1 s (CPRI-tested); higher on request |
| Degree of protection | Up to IP55 (CPRI-tested) |
| Internal separation | Up to Form 4 |
| Sheet steel | CRCA, 2 mm or 1.6 mm as specified |
| Surface finish | 7-tank pre-treatment, powder coated up to 100 microns |
| Busbars | Aluminium, TPN, rated to the load |
| Standard | IS/IEC 61439-1 and 61439-2 |
Applications
- Commercial buildings
- Hospitals and hotels
- Residential high-rises
- Factories and warehouses
Example builds

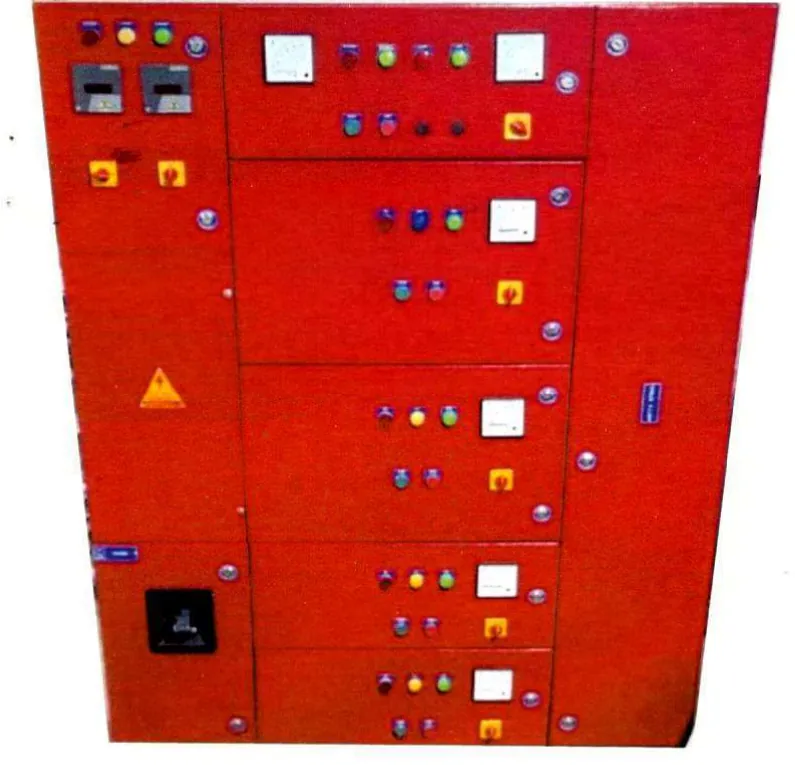

Fire pump control panel
Starters for 2 × 75 HP and 2 × 15 HP star-delta pumps, plus 12 V diesel-engine pump controls, 400 A aluminium busbar
